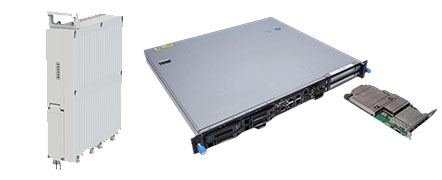

LS5400D/5405D/5440D are advanced outdoor LTE distributed gNodeB products with four output power options: 4x250mw, 4x5W and 4x40W, which can operate in either TDD or FDD mode. These devices provide users with high-speed broadband wireless access to the Internet and can operate in 5, 10, 15, or 20 MHz bandwidth, supporting 256 concurrent users and 384 RRC users.
| Index Items | Index Value |
|---|---|
| Support frequency | NR N78 3300–3600 MHz |
| Duplex mode | 5G 5 ms single cycle (frame structure: DDDDDSUU); 2.5 ms single cycle (frame structure: DSUUU); 2.5 ms double cycle (frame structure: DDDDSUU) |
| Supported bandwidth | 5G 100 MHz / 100 MHz and other bandwidths |
| Maximum number of cells supported by a single BS | 5G: 3 (4T4R) |
| Number of online users supported by a single BS | 5G: 3 × 1200 |
| Number of active users supported by a single BS | 5G: 3 × 400 |
| Maximum number of EUs supported by a single BS | 4 |
| Maximum number of RUs supported by a single BS | 64 |
| EU cascade supported by a single base station | 2 levels |
| Index Items | Index Value |
|---|---|
| Frequency band | n78: 3300–3700 MHz n77: 3700–4200 MHz |
| Occupied bandwidth | 10/20/40/50/60/80/100 MHz |
| TDD UL/DL configuration | 5 ms periodicity: DDDDD DDSUU 2.5 ms dual periodicity: DDDSU DDSUU |
| Carriers and multiplexing | 1CC × 4T4R (no external RRU) 2CC × 2T2R (with external RRUs for the second cell) |
| Synchronization | GPS IEEE 1588v2* |
| Peak throughput (100 MHz) | 5 ms periodicity, DDDDD DDSUU, 6:4:4 — DL 1,490 Mbps; UL 230 Mbps 2.5 ms dual periodicity, DDDSU DDSUU, 10:2:2 — DL 1,350 Mbps; UL 340 Mbps |
| Maximum capacity | 1,200 users |
| Maximum deployment range | 4 km |
| RTT latency | Less than 12 ms |
| Output power | 37 ± 1.5 dBm (5 W) Adjustable: 33.0 ± 1.5 dBm (2 W) or 34.8 ± 1.5 dBm (3 W) |
| Receive sensitivity | −96 dBm |
| VSWR | < 1.5 |
| Power consumption | 105 W (no load) 190 W (full load) |
| Volume and dimensions | 14 L; 400 × 330 × 106 mm |
| Weight | 15 kg |
| Reset time | 5 min |
| Index Items | Index Value |
|---|---|
| NR frequency band | n79: 4600–4800 MHz n78: 3300–3600 MHz n77: 3550–3950 MHz n41: 2515–2675 MHz* |
| Occupied bandwidth | 10/50/100 MHz |
| TDD UL/DL configuration | 5 ms periodicity: DDDDD DDSUU 2.5 ms dual periodicity: DDDSU DDSUU |
| Carriers and multiplexing | 1CC × 4T4R (no external RRU) 2CC × 2T2R (with external RRUs for the second cell) |
| Synchronization | GPS |
| Peak throughput (100 MHz) | 5 ms periodicity, DDDDD DDSUU, 6:4:4 — DL 1,490 Mbps; UL 230 Mbps 2.5 ms dual periodicity, DDDSU DDSUU, 10:2:2 — DL 1,350 Mbps; UL 340 Mbps |
| Maximum capacity | 1,200 users |
| Maximum deployment range | 15 km |
| RTT latency | Less than 12 ms |
| Output power | 46 ± 1.5 dBm |
| Receive sensitivity | −102 dBm |
| VSWR | < 1.5 |
| Power consumption | 180 W (no load) 680 W (full load) |
| Volume and dimensions | 25 L; 450 × 330 × 165 mm |
| Weight | 25 kg |
| Reset time | 5 min |
