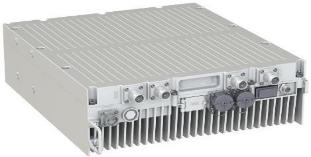

The LS5440 is an outdoor integrated 5G base station. It physically combines the baseband and radio frequency unit, saving the cost of on-site construction and installation.
Adopting an innovative design, the LS5440 operates in 4TX and 4RX mode, supporting higher downlink and uplink peak throughput and larger carrier capacity.
| Index Items | Index Value |
|---|---|
| NR frequency band | n79: 4600–4800 MHz n78: 3300–3600 MHz n77: 3550–3950 MHz n41: 2515–2675 MHz* |
| Occupied bandwidth | 10/50/100 MHz |
| TDD UL/DL configuration | 5 ms periodicity: DDDDD DDSUU 2.5 ms dual periodicity: DDDSU DDSUU |
| Carriers and multiplexing | 1CC × 4T4R (no external RRU) 2CC × 2T2R (with external RRUs for the second cell) |
| Modulation | DL: MCS0 (QPSK) to MCS27 (256QAM) UL: MCS0 (QPSK) to MCS27 (256QAM) |
| Quality of service | QCI 1–9, compliant with standard 3GPP 5G QoS Identifier (5QI) |
| Security | NR interface: SNOW 3G, AES and ZUC for encryption and integrity Backhaul port: IPsec (PSK, CA)* |
| Link auto adaptation | CFI: 1–3; CCE: 1, 2, 4, 8 or 16; DL/UL MCS 0–27; DL MIMO layers 1, 2 or 4; UL MIMO layers 1 or 2; DL/UL frequency-selective scheduling with minimum 4 RB unit*; open-loop/closed-loop uplink power control for PRACH and PUCCH |
| Self-Organizing Network (SON)* | Automatic Neighbor Relation (ANR) PCI conflict detection |
| Synchronization | GPS |
| Index Items | Index Value |
|---|---|
| Peak throughput (100 MHz) | 5 ms periodicity, DDDDD DDSUU, 6:4:4 — DL 1,490 Mbps; UL 230 Mbps 2.5 ms dual periodicity, DDDSU DDSUU, 10:2:2 — DL 1,350 Mbps; UL 340 Mbps |
| Maximum capacity | 1,200 users |
| Maximum deployment range | 15 km |
| RTT latency | Less than 12 ms |
| Output power | 46 ± 1.5 dBm |
| Receive sensitivity | −102 dBm |
| VSWR | < 1.5 |
| Power consumption | 180 W (no load) 680 W (full load) |
| Volume and dimensions | 25 L; 450 × 330 × 165 mm |
| Weight | 25 kg |
| Reset time | 5 min |
