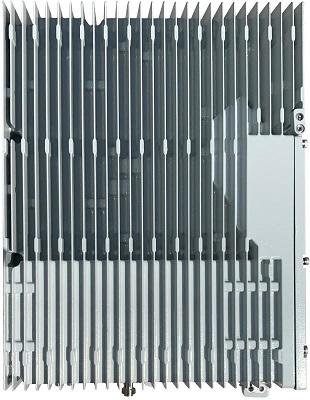

LC940 Outdoor integrated high-power base station is based on an SoC solution with integrated baseband and radio frequency processing and IP backhaul through an Ethernet or optical interface. It supports efficient and rapid 4G TDD coverage deployment for rural, urban and urban-fringe areas, while remote equipment management through the HeMS integrated network helps reduce operating costs and improve network quality.
| Item | Specification |
|---|---|
| Frequency | B40: 2T2R TDD 2300–2400 MHz |
| Bandwidth | 5/10/15/20 MHz |
| Maximum Transmit Power | Up to 40 W/port |
| Main Technical Parameters | Support 128 active users and 384 RRC connection users Support GPS and 1588v2 synchronization Support IPsec protocol |
| Physical Interface | SFP RJ45 Ethernet External LTE RF connector (N type) External GPS antenna connector (N type) Power connector (aviation waterproof connector) |
| Operating Temperature | -40°C to +55°C |
| Operating Humidity | 10%–95% |
| Power Supply | DC 48 V |
| Maximum Consumption | 280 W |
| Dimensions (L × W × H) | <17 L |
| Weight | <15 kg (without accessory) |
| Durability | IP65 |
| Installation Type | Wall or pole |
