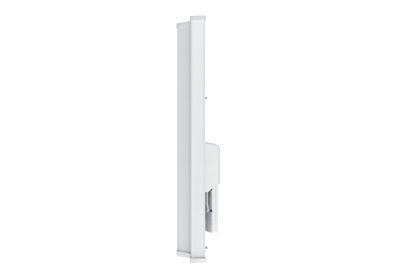

The LTB8L is an IP66-rated outdoor 5 GHz wireless bridge designed for directional broadband connectivity. It combines a 20 dBi antenna, up to 30 dBm transmit power, a 120° horizontal and 4° vertical beamwidth, and two SMA radio interfaces.
The unit supports IEEE 802.11a/n/ac, Gigabit Ethernet, passive 48 V PoE and AP or Station operation. Web, AC and SNMP management, 2.4 GHz Wi-Fi management, VLAN, QoS, alerting, spectrum scanning, link estimation and watchdog functions support practical field deployment.

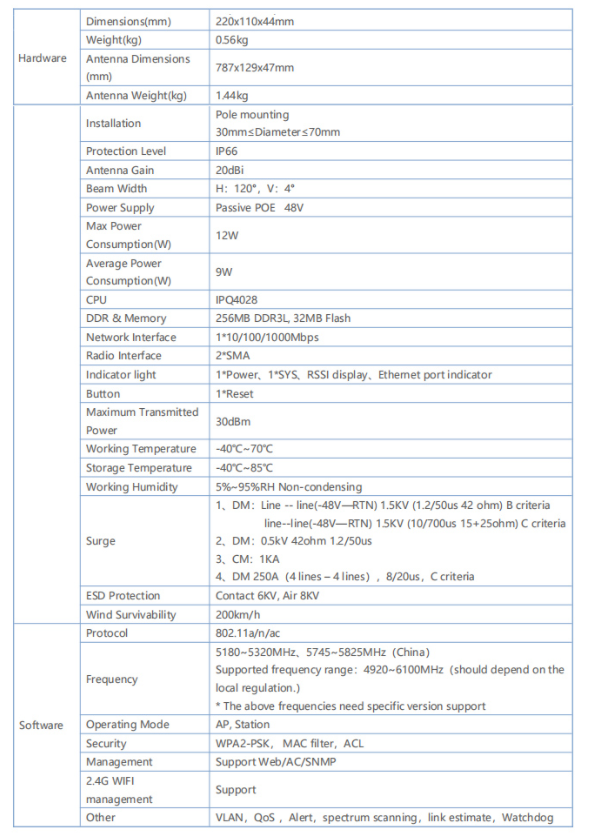

| Category | Item | Specification |
|---|---|---|
| Hardware | Dimensions | 220 × 110 × 44 mm |
| Hardware | Weight | 0.56 kg |
| Hardware | Antenna Dimensions | 787 × 129 × 47 mm |
| Hardware | Antenna Weight | 1.44 kg |
| Hardware | Installation | Pole mounting; 30 mm ≤ diameter ≤ 70 mm |
| Hardware | Protection Level | IP66 |
| Hardware | Antenna Gain | 20 dBi |
| Hardware | Beam Width | H: 120°; V: 4° |
| Hardware | Power Supply | Passive PoE, 48 V |
| Hardware | Maximum Power Consumption | 12 W |
| Hardware | Average Power Consumption | 9 W |
| Hardware | CPU | IPQ4028 |
| Hardware | DDR & Memory | 256 MB DDR3L; 32 MB Flash |
| Hardware | Network Interface | 1 × 10/100/1000 Mbps |
| Hardware | Radio Interface | 2 × SMA |
| Hardware | Indicator Light | 1 × Power; 1 × SYS; RSSI display; Ethernet port indicator |
| Hardware | Button | 1 × Reset |
| Hardware | Maximum Transmitted Power | 30 dBm |
| Hardware | Working Temperature | −40°C to +70°C |
| Hardware | Storage Temperature | −40°C to +85°C |
| Hardware | Working Humidity | 5%–95% RH, non-condensing |
| Hardware | Surge Protection | DM: line-to-line (−48 V—RTN) 1.5 kV (1.2/50 μs, 42 Ω), B criteria; line-to-line (−48 V—RTN) 1.5 kV (10/700 μs, 15+25 Ω), C criteria; DM 0.5 kV (420 Ω, 1.2/50 μs); CM 1 kA; DM 250 A (4 lines–4 lines), 8/20 μs, C criteria |
| Hardware | ESD Protection | Contact 6 kV; air 8 kV |
| Hardware | Wind Survivability | 200 km/h |
| Software | Protocol | IEEE 802.11a/n/ac |
| Software | Frequency | 5180–5320 MHz, 5745–5825 MHz (China) Supported frequency range: 4920–6100 MHz (subject to local regulations) * The above frequencies require specific version support. |
| Software | Operating Mode | AP, Station |
| Software | Security | WPA2-PSK, MAC filter, ACL |
| Software | Management | Web / AC / SNMP |
| Software | 2.4 GHz Wi-Fi Management | Supported |
| Software | Other | VLAN, QoS, alert, spectrum scanning, link estimate, watchdog |
