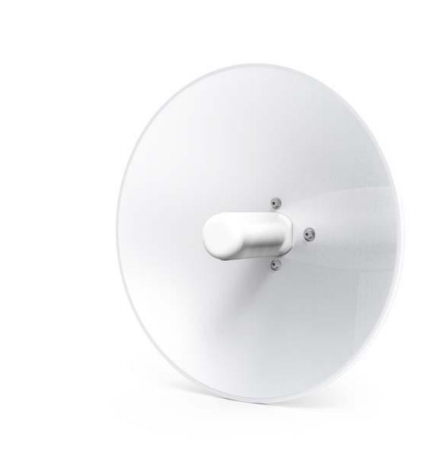

The LTB8M is an IP66-rated outdoor wireless bridge and router for 5 GHz broadband links. Its 23 dBi directional antenna, up to 27 dBm transmit power and 10° horizontal and vertical beamwidth support focused wireless coverage in demanding outdoor environments.
It supports IEEE 802.11a/n/ac, Gigabit Ethernet with 48 V PoE+, and AP, Station, WDS AP and WDS Station modes. Web, AC and SNMP management, VLAN, QoS, watchdog and scheduled restart functions simplify deployment and ongoing operation.

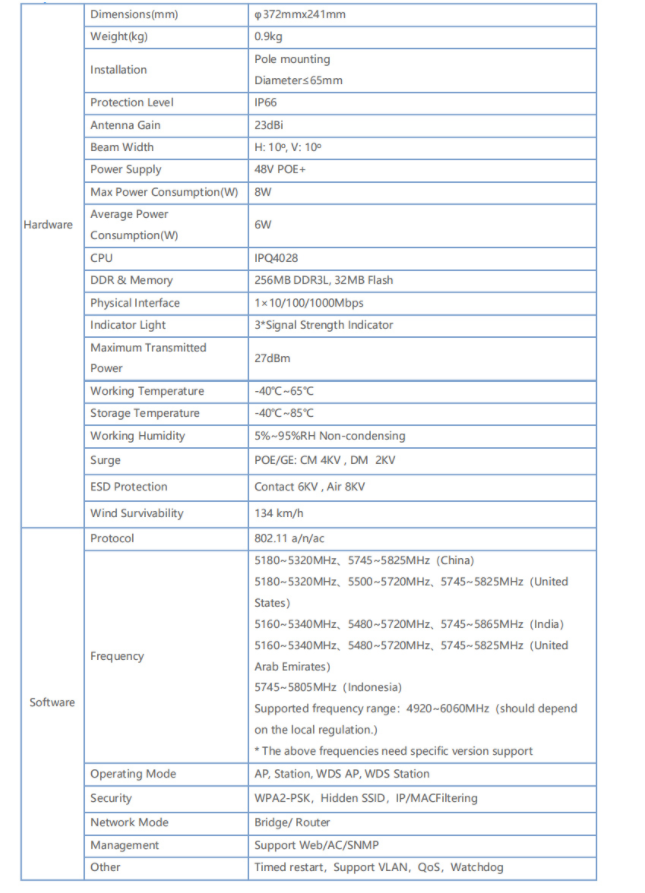

| Category | Item | Specification |
|---|---|---|
| Hardware | Dimensions | Ø 372 × 241 mm |
| Hardware | Weight | 0.9 kg |
| Hardware | Installation | Pole mounting; diameter ≤ 65 mm |
| Hardware | Protection Level | IP66 |
| Hardware | Antenna Gain | 23 dBi |
| Hardware | Beam Width | H: 10°; V: 10° |
| Hardware | Power Supply | 48 V PoE+ |
| Hardware | Maximum Power Consumption | 8 W |
| Hardware | Average Power Consumption | 6 W |
| Hardware | CPU | IPQ4028 |
| Hardware | DDR & Memory | 256 MB DDR3L; 32 MB Flash |
| Hardware | Physical Interface | 1 × 10/100/1000 Mbps |
| Hardware | Indicator Light | 3 × signal strength indicator |
| Hardware | Maximum Transmitted Power | 27 dBm |
| Hardware | Working Temperature | −40°C to +65°C |
| Hardware | Storage Temperature | −40°C to +85°C |
| Hardware | Working Humidity | 5%–95% RH, non-condensing |
| Hardware | Surge Protection | PoE/GE: CM 4 kV; DM 2 kV |
| Hardware | ESD Protection | Contact 6 kV; air 8 kV |
| Hardware | Wind Survivability | 134 km/h |
| Software | Protocol | IEEE 802.11a/n/ac |
| Software | Frequency | 5180–5320 MHz, 5745–5825 MHz (China) 5180–5320 MHz, 5500–5720 MHz, 5745–5825 MHz (United States) 5160–5340 MHz, 5480–5720 MHz, 5745–5865 MHz (India) 5160–5340 MHz, 5480–5720 MHz, 5745–5825 MHz (United Arab Emirates) 5745–5805 MHz (Indonesia) Supported frequency range: 4920–6060 MHz (subject to local regulations) * The above frequencies require specific version support. |
| Software | Operating Mode | AP, Station, WDS AP, WDS Station |
| Software | Security | WPA2-PSK, hidden SSID, IP/MAC filtering |
| Software | Network Mode | Bridge / Router |
| Software | Management | Web / AC / SNMP |
| Software | Other | Timed restart, VLAN, QoS, watchdog |
