The LS5405 is an outdoor integrated 5G base station that combines the baseband and radio frequency unit, reducing on-site construction and installation requirements.
Its 4TX and 4RX design supports high downlink and uplink peak throughput and larger carrier capacity. This N77 model operates in the 3700–4200 MHz band.

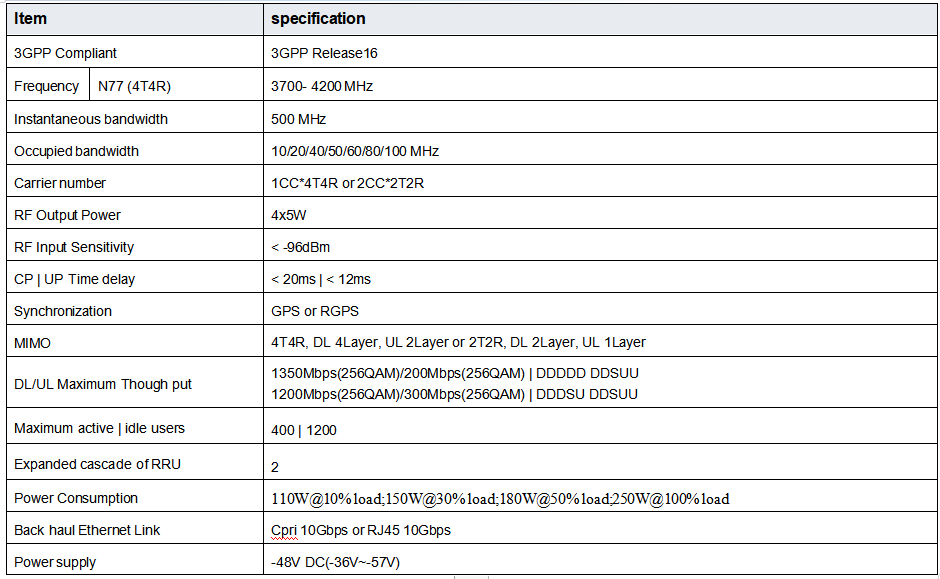

| Index Items | Index Value |
|---|---|
| Frequency band | n77: 3700–4200 MHz |
| Occupied bandwidth | 10/20/40/50/60/80/100 MHz |
| TDD UL/DL configuration | 5 ms periodicity: DDDDD DDSUU 2.5 ms dual periodicity: DDDSU DDSUU |
| Carriers and multiplexing | 1CC × 4T4R (no external RRU) 2CC × 2T2R (with external RRUs for the second cell) |
| Modulation | DL: MCS0 (QPSK) to MCS27 (256QAM) UL: MCS0 (QPSK) to MCS27 (256QAM) |
| Quality of service | QCI 1–9, compliant with standard 3GPP 5G QoS Identifier (5QI) |
| Security | NR interface: SNOW 3G, AES and ZUC for encryption and integrity Backhaul port: IPsec (PSK, CA)* |
| Link auto adaptation | CFI: 1–3; CCE: 1, 2, 4, 8 or 16; DL/UL MCS 0–27; DL MIMO layers 1, 2 or 4; UL MIMO layers 1 or 2; DL/UL frequency-selective scheduling with minimum 4 RB unit*; open-loop/closed-loop uplink power control for PRACH and PUCCH |
| Self-Organizing Network (SON)* | Automatic Neighbor Relation (ANR) PCI conflict detection |
| Synchronization | GPS IEEE 1588v2* |
| Index Items | Index Value |
|---|---|
| Peak throughput (100 MHz) | 5 ms periodicity, DDDDD DDSUU, 6:4:4 — DL 1,490 Mbps; UL 230 Mbps 2.5 ms dual periodicity, DDDSU DDSUU, 10:2:2 — DL 1,350 Mbps; UL 340 Mbps |
| Maximum capacity | 1,200 users |
| Maximum deployment range | 4 km |
| RTT latency | Less than 12 ms |
| Output power | 37 ± 1.5 dBm (5 W) Adjustable: 33.0 ± 1.5 dBm (2 W) or 34.8 ± 1.5 dBm (3 W) |
| Receive sensitivity | −96 dBm |
| VSWR | < 1.5 |
| Power consumption | 105 W (no load) 190 W (full load) |
| Volume and dimensions | 14 L; 400 × 330 × 106 mm |
| Weight | 15 kg |
| Reset time | 5 min |
