4G Distributed eNB LS4440D

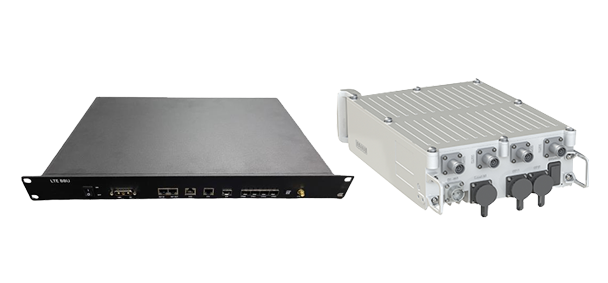

The LS4440D outdoor distributed eNodeB integrates 4G LTE TDD radio access with flexible IP backhaul for rapid coverage deployment. It supports B40 and B41 operation and can be managed remotely through the HeMS network management system.

Technical Specifications

ItemSpecification
Radio Standard4G LTE TDD
Operating Frequency BandsB40: 2300–2400 MHz
B41: 2496–2690 MHz
Channel Bandwidth5/10/15/20 MHz
Duplex ModeTDD
RF Channels4
MIMO4T4R
Maximum Transmit PowerUp to 40 W/port
System CapacitySupport 128 active users and 384 RRC connection users
SynchronizationGPS / IEEE 1588v2
Backhaul and ManagementIP backhaul through Ethernet or optical interface
Remote management through HeMS
Maximum Deployment Range15 km
Power SupplyDC 48 V
Operating Temperature-40°C to +55°C
Operating Humidity10%–95%
ProtectionIP65
Installation TypeWall or pole
